Field Bendable Linear

Kurba Large

Field Bendable 24V System

100-346 lm/ft, 1.8-6.7 W/ft

328-1134.9 lm/m, 5.9-22 W/ft

Warm DimTunable WhitePixelRGB/RGBWIP68
Overview
Specifications
Metric Units

Kurba Large is a dot free direct view, highly versatile, energy efficient and flexible LED strip suitable for outdoor wet locations capable of horizontal/side bends and vertical/top bends with a 6in” bending radius. The silicone material offers excellent heat, weather, UV, and solvent resistance and is self cleaning which repels dust and dirt accumulation.

  • CCT: 18K - 30K, 2200K, 22K - 57K, 2400K, 2600K, 26K - 42K, 2700K, 3000K, 3500K, 4000K, 4200K, RGB26K, RGB27K, RGB30K, RGB40K
  • CRI: 90+
  • Type: Bendable
  • Output Per: 328 lm/m, 100 lm/ft, 360.8 lm/m, 110 lm/ft, 393.6 lm/m, 120 lm/ft, 410 lm/m, 125 lm/ft, 524.8 lm/m, 160 lm/ft, 544.5 lm/m, 166 lm/ft, 583.8 lm/m, 178 lm/ft, 629.8 lm/m, 192 lm/ft, 636.3 lm/m, 194 lm/ft, 672.4 lm/m, 205 lm/ft, 688.8 lm/m, 210 lm/ft, 701.9 lm/m, 214 lm/ft, 787.2 lm/m, 240 lm/ft, 793.8 lm/m, 242 lm/ft, 898.7 lm/m, 274 lm/ft, 938.1 lm/m, 286 lm/ft, 1134.9 lm/m 346 lm/ft
  • Mounting: Recessed, Surface
  • Bend Type: Horizontal, Vertical
  • Input Voltage: Low Voltage
  • Color: Pixel, RGB/RGBW, Static White, Tunable White, Warm Dim
  • Optics: Black Lens
  • Wattage Per: 5.9 W/m, 1.8 W/ft, 9.2 W/m, 2.8 W/ft, 11.8 W/m, 3.6 W/ft, 14.8 W/m, 4.5 W/ft, 22 W/m 6.7 W/ft
  • Rating: IP68
  • Lens Aperture: 16 mm 0.63 inch
  • Size: 16 mm 0.63 in
  • Height: 17.018 mm 0.67 in
  • Lens: Black Lens, Silicone Frosted
  • Operating Temperature: -40-55 C, -40°F to 131°F, -40-65 C -40°F to 149°F

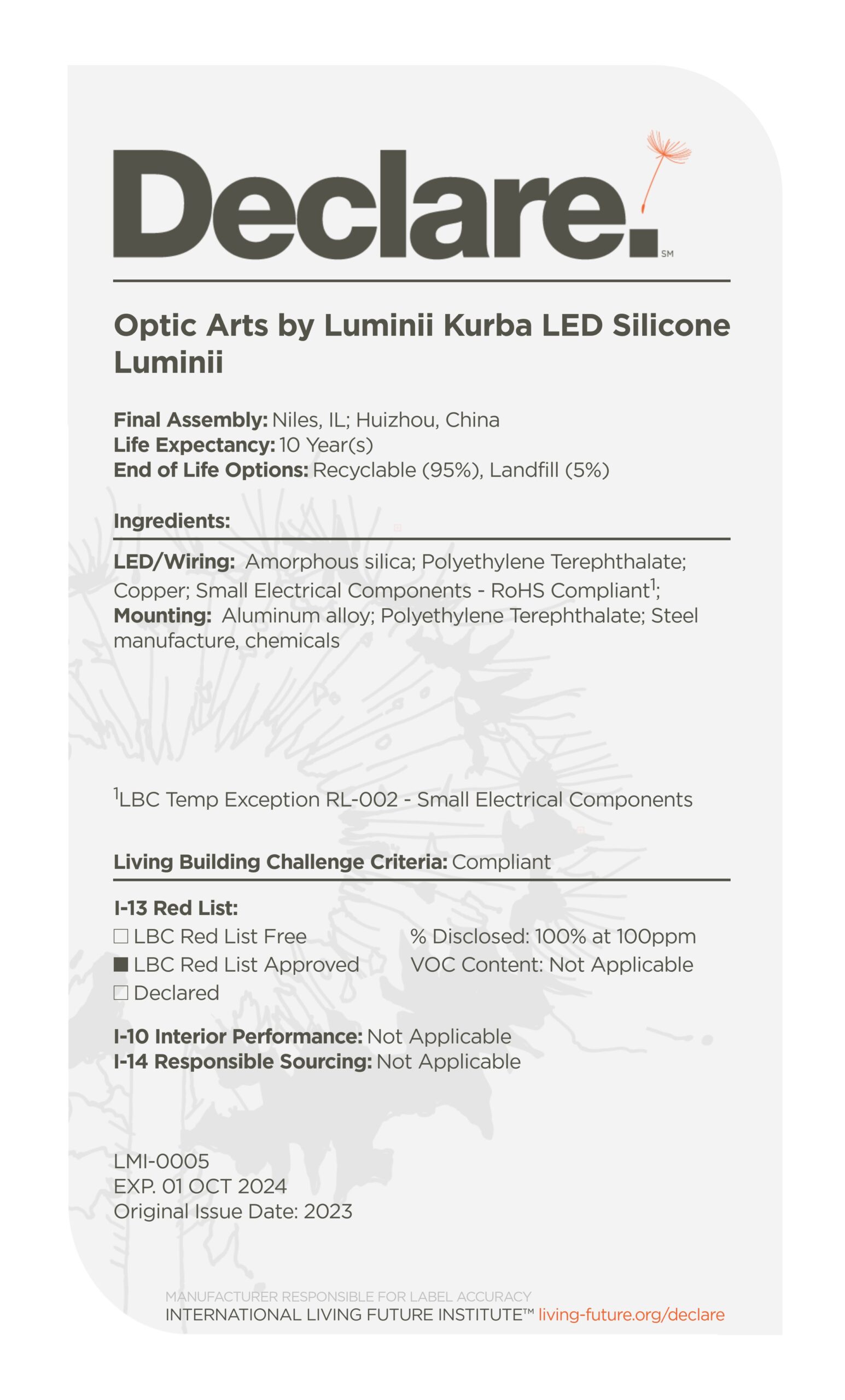

  • Sustainability: Declare, JA8/Title 24, RoHS/Reach
  • Manufacturing Details: Shipped from UK
  • Warranty: 5 Years
  • Finishes: Black silicon, Blue silicon, Green Silicon, Red Silicon, White silicon
  • Product Number: KBL
Learn more
Specsheets
Install Guides
Cross Reference Guide
DWG CAD
IES Files
North America
Kurba Large V H Static White Specsheet
3.19 MB
PDF
Kurba Large V H Dynamic Color Specsheet
4.34 MB
PDF
UK, Europe, MEA, Asia
Kurba Large W Static White EMEA
1.48 MB
PDF
Kurba-Install-Guide
2.14 MB
PDF
Kurba Cross Reference
581.27 KB
PDF
Kurba Large Vertical 2D Dimensioning
1.07 MB
DWG
Kurba Large Raceway 2D Dimensions
107.58 KB
DWG
Kurba Large IES EMEA
36.46 KB
ZIP
KBL-W-HB-48-38LO-30K-R80-SF-NA-BRGB.ies
3 KB
IES
KBL-W-HB-48-38LO-30K-R80-BL-NA-BK.ies
2.88 KB
IES
KBL-W-HB-48-38LO-30K-R80-BL-NA-BK.ies
3.15 KB
IES
KBL-W-HB-48-38HO-30K-R80-SF-NA-BRGB.ies
3.13 KB
IES
KBL-W-HB-48-38HO-30K-R80-BL-NA-BK.ies
2.97 KB
IES
KBL-W-HB-48-38SO-30K-R80-SF-NA-WH.ies
3.08 KB
IES
KBL-W-HB-48-38SO-30K-R80-SF-NA-BRGB.ies
3.05 KB
IES
KBL-W-HB-48-38SO-30K-R80-BL-NA-BK.ies
2.92 KB
IES
KBL-W-HB-48-38MO-30K-R80-SF-NA-WH.ies
3.14 KB
IES
KBL-W-HB-48-38MO-30K-R80-SF-NA-BRGB.ies
3.14 KB
IES
KBL-W-HB-48-38MO-30K-R80-BL-NA-BK.ies
2.96 KB
IES
KBL-W-HB-48-38LO-30K-R80-SF-NA-WH.ies
3.04 KB
IES
KBL-W-VB-48-38MO-30K-R80-SF-NA-WH.ies
3.15 KB
IES
KBL-W-VB-48-38MO-30K-R80-SF-NA-BRGB.ies
3.14 KB
IES
KBL-W-VB-48-38MO-30K-R80-BL-NA-BK.ies
2.97 KB
IES
KBL-W-VB-48-38LO-30K-R80-SF-NA-WH.ies
3.07 KB
IES
KBL-W-VB-48-38LO-30K-R80-SF-NA-BRGB.ies
3.06 KB
IES
KBL-W-VB-48-38LO-30K-R80-BL-NA-BK.ies
2.88 KB
IES
KBL-W-VB-48-38SO-30K-R80-SF-NA-WH.ies
3.08 KB
IES
KBL-W-VB-48-38SO-30K-R80-SF-NA-BRGB.ies
3.06 KB
IES
KBL-W-VB-48-38SO-30K-R80-BL-NA-BK.ies
2.92 KB
IES
KBL-W-HB-48-TW44SO-22K57K-R90-SF-NA-WH.ies
3.1 KB
IES
KBL-W-HB-48-38SO-30K-R90-SF-NA-WH.ies
3.08 KB
IES
KBL-W-HB-48-38SO-26K-R90-BL-NA-BK.ies
2.79 KB
IES
KBL-W-HB-48-38MO-30K-R90-SF-NA-WH.ies
3.13 KB
IES
KBL-W-HB-48-38MO-26K-R90-BL-NA-WH.ies
2.94 KB
IES
KBL-W-HB-48-38LO-30K-R90-SF-NA-WH.ies
3.04 KB
IES
KBL-W-HB-48-38LO-26K-R90-BL-NA-BK.ies
2.79 KB
IES
KBL-W-HB-48-38HO-30K-R90-SF-NA-WH.ies
3.13 KB
IES
KBL-W-HB-48-38HO-26K-R90-BL-NA-BK.ies
2.95 KB
IES
KBL-W-VB-48-38SO-30K-R90-SF-NA-WH.ies
3.12 KB
IES
KBL-W-VB-48-38SO-26K-R90-BL-NA-BK.ies
2.77 KB
IES
KBL-W-VB-48-38MO-26K-R90-BL-NA-BK.ies
2.92 KB
IES
KBL-W-VB-48-38LO-30K-R90-SF-NA-WH.ies
3.1 KB
IES
KBL-W-VB-48-38LO-26K-R90-BL-NA-BK.ies
2.79 KB
IES
